FULL AUTOMATIC BLOCK MACHINE

KRS - 8003

KRS - 8003 FULL AUTOMATIC BLOCK MACHINE: is designed with a ground mortar central system according to the automatic operating system. It is designed for continuous operation on a 24 hour basis. We offer manufacturing in different automation models and capacities. With its special motor, it has a high production speed and capacity. By simply changing the mold, it is capable of producing various types of blokcs, including standard blocks, foam concrete blocks, curb stones, hollow chimney blocks, and ready-mixed concrete, with a height range from 5 cm to 25 cm. Technical specifications, capacity, and installation diagrams are provided below. The machine has the capacity to produce 11.520 Pieces (20*40*20 cm) of Blocks per day (8 hours of operation).

KRS - 8003 FULL AUTOMATIC BLOCK MACHINE: Our facility is produced as a "turn key" complete plant. It does not require any additional equipment except for curing and product resting rooms. For a plant with these specifications, we recommend a minimum installation area, including resting and storage, of 1.500 m². There is no obligation for a closed area. The concrete floor area should constitute at least 1/3 of the total plant area.

Control System

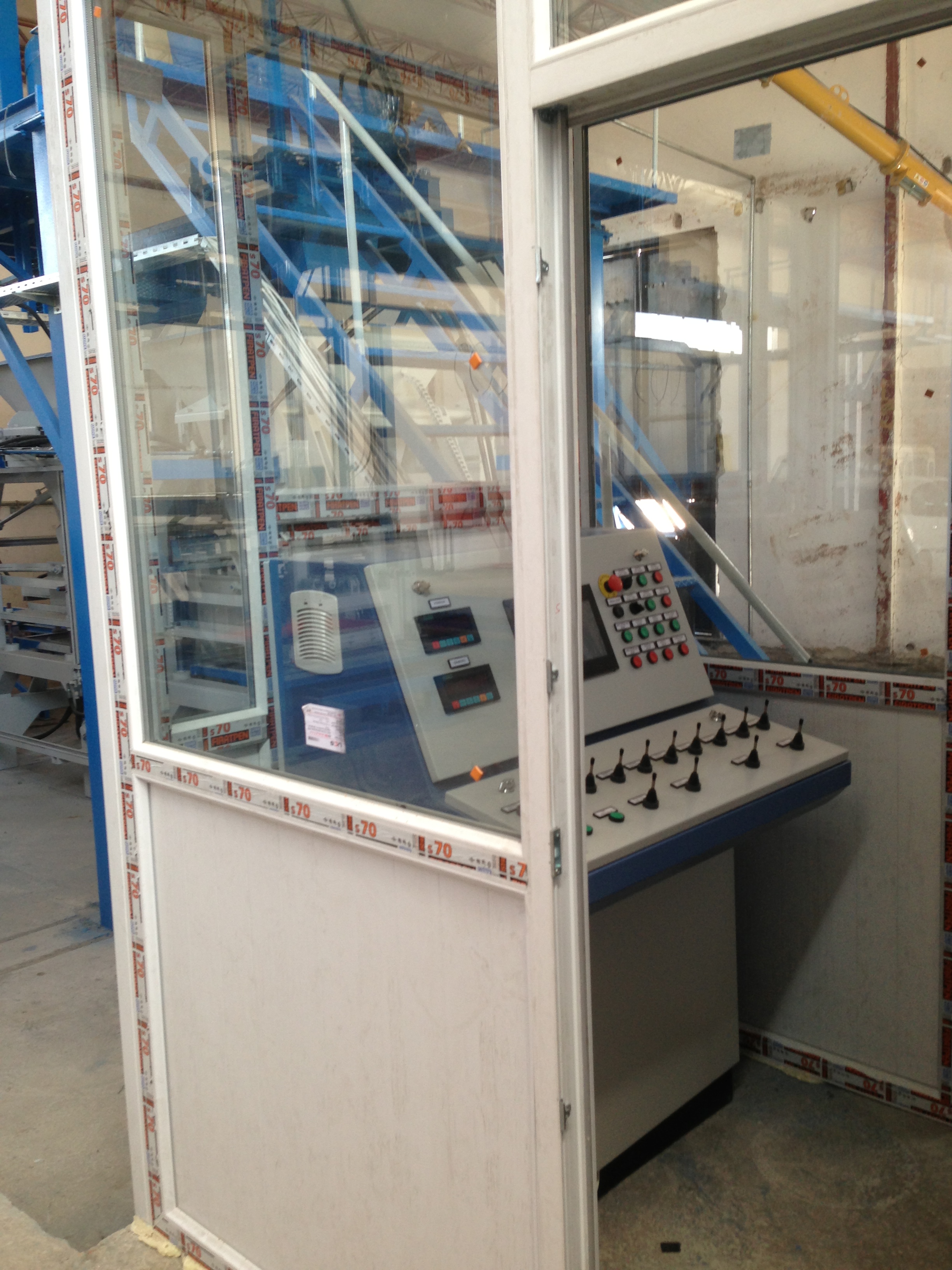

Full Automatic / PLC Hydraulic Control System

Hour Production Capacity

180 - 220 Pallet / Hour

Working Time

7 / 24 Hour ( Optional )

Pallet Dimensions

Footed Pallet: 980 x 980 x 40 mm

Electrical System

Schneider – Siemens  ABB

Total Electrical Power

180 kW

Machine Dimensions

1650 x 2350 x 2500 mm

Chasiss Dimensions

150 x 150 x 8 mm Box Profile

Lower Vibration Motor Power

7.5 kW x 2 Piece

Mortar Bucket

Single Hopper / 1 m³

Hydraulic Pressure

220 Bar

Working Pressure

140 Bar

Hydraulic Motor Power

15 kw

Hydraulic Oil Tank Capacity

300 LT

Vibration Cooling Capacity

30.000 Kcal



BLOCK TYPE

DIMENSIONS

CAPACITY DETAILS

Hollow Block or Solid Block

100 x 400 x 200 mm

Per Pallet : 12 Piece     /      8 Hour Capacity : 17.280 Piece

Hollow Block or Solid Block 150 x 400 x 200 mm

Per Pallet : 10 Piece     /      8 Hour Capacity : 14.400 Piece

Hollow Block or Solid Block

200 x 400 x 200 mm Per Pallet : 8 Piece     /      8 Hour Capacity : 11.520 Piece

Hollow Block or Solid Block

250 x 400 x 200 mm Per Pallet : 6 Piece     /      8 Hour Capacity : 8.640 Piece
