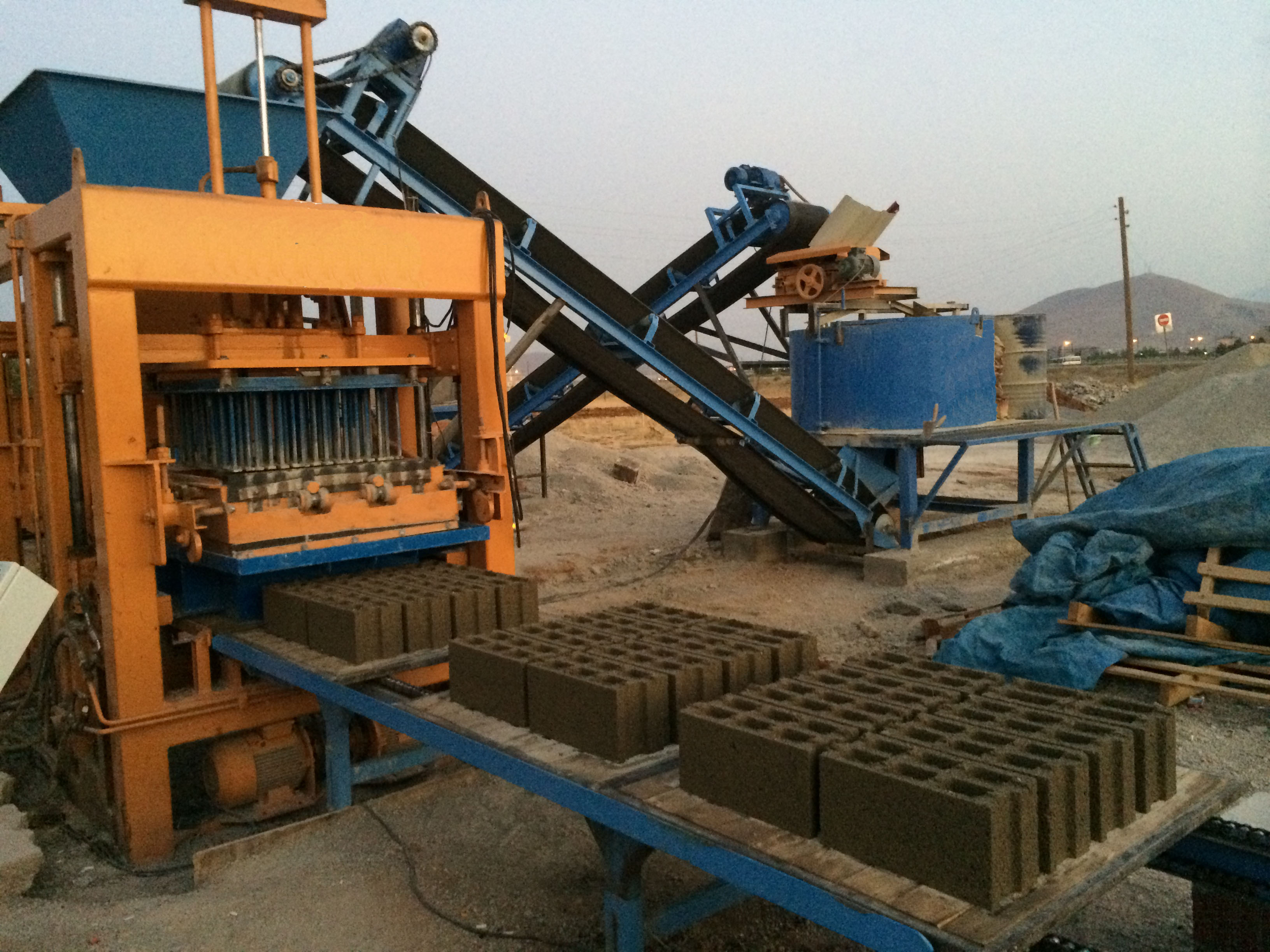

KRS - 8003 Semi Automatic Block Machine: is designed with a hydraulic control system and a Stable mortar central station. It is designed to operate on a 24-hour basis. We offer different production capacities for this machine. Thanks to its special electric motors and high-power reducers, it boasts a very fast production rate and high capacity. By simply changing the molds, it can produce various types of Blocks, Curbstone, Hollow Chimney Blocks, and Ready-mixed Concrete with heights ranging from 5 cm to 25 cm. Technical specifications, capacity, and installation diagrams are provided below. With an 8-hour daily operation, it has a production capacity of 8.960 Pieces of 20*40*20 cm Blocks.

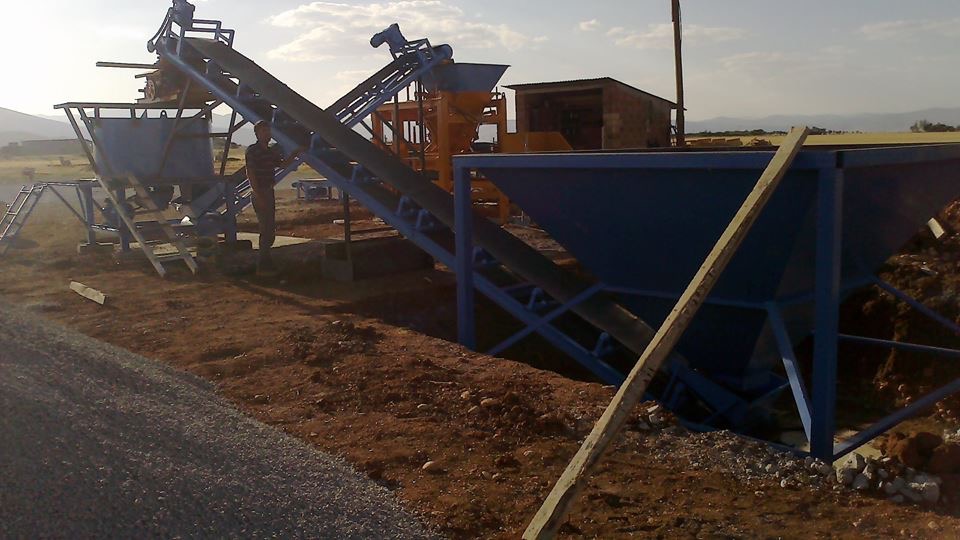

KRS - 8003 Semi Automatic Block Machine: is manufactured as a complete turnkey plant. It does not require any additional equipment except for the drying and product curing rooms. For a plant of this type, we recommend an installation, curing, and storage area of at least 1.000 m². There is no obligation for a closed area. The prepared concrete floor should cover at least 1/3 of the total plant area.
Control System Semi Automatic / Hydraulic Control System | Hour Production Capacity 120 - 140 Pallet / Hour | Working Time 7 / 24 Hour ( Optional ) |
Pallet Dimensions Pallet: 980 x 980 x 40 mm | Electrical System Schneider – Siemens – ABB | Total Electrical Power 80 kW |
Machine Dimensions 1650 x 2350 x 2500 mm | Chasiss Dimensions 150 x 150 x 8 mm Box Profile | Lower Vibration Motor Power 7.5 kW x 2 Piece |
Mortar Bucket Single Hopper / 1 m³ | Hydraulic Pressure 180 Bar | Working Pressure 100 Bar |
Hydraulic Motor Power 15 kw | Hydraulic Oil Tank Capacity 300 LT | Vibration Cooling Capacity 25.000 Kcal |
|
BLOCK TYPE |
DIMENSIONS |
CAPACITY DETAILS |
|
Hollow Block or Solid Block |
100 x 400 x 200 mm |
Per Pallet : 12 Piece / 8 Hour Capacity : 13.440 Piece |
| Hollow Block or Solid Block | 150 x 400 x 200 mm |
Per Pallet : 10 Piece / 8 Hour Capacity : 11.200 Piece |
|
Hollow Block or Solid Block |

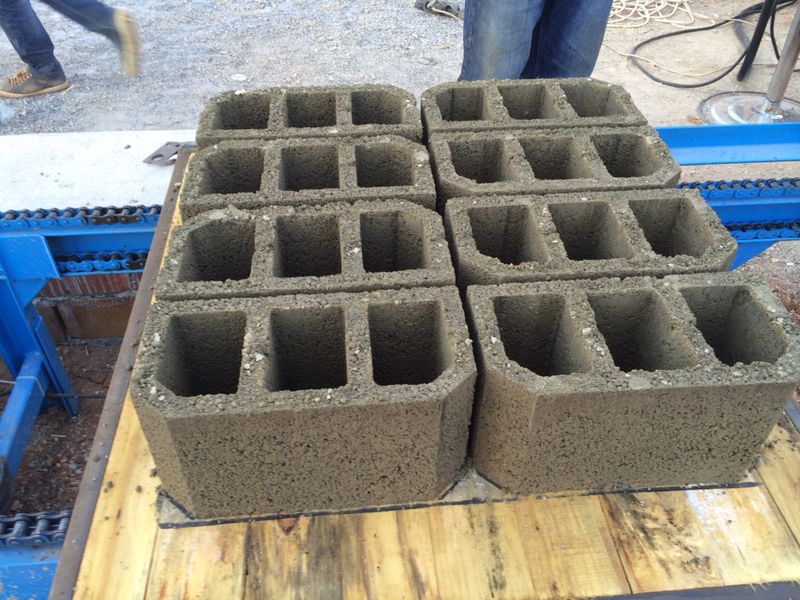

200 x 400 x 200 mm | Per Pallet : 8 Piece / 8 Hour Capacity : 8.960 Piece |
|
Hollow Block or Solid Block |
250 x 400 x 200 mm | Per Pallet : 6 Piece / 8 Hour Capacity : 6.720 Piece |
